Open Supervised Device Protocol - OSDP
Application Note AN340606-1
Replacing legacy Card Readers with OSDP compliant versions or installing new OSDP compliant readers and devices which need to operate with existing legacy Wiegand control panels.
In cases where a new OSDP compliant reader is installed into an existing traditional Wiegand, Strobed,F/2F,etc. system, the following scenarios can used. There are a couple of different approaches. Although most OSDP compliant readers have a Wiegand output mode, there are advantages to converting all of the devices at the door or gate to an OSDP interface.

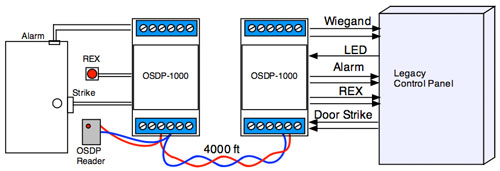

Reader Only - The image above shows just the reader being converted to an OSDP interface while the remaining devices simply connect with dedicated wires back to the control panel. The OSDP-1000 can be mounted at or inside the control panel's cabinet or be located at the reader location. In the latter case, the Wiegand signals are still restricted to the 500 foot limit. The OSDP-1000 module is configured for "Panel Interface Mode" via DIP switch.
